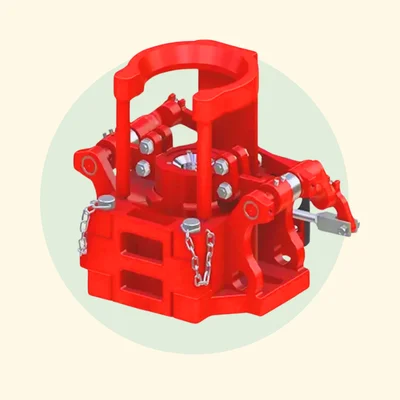

Petrorio Drilling Tools manufactures the Pneumatic Tubing Spider (Model C), built to handle tubulars ranging from 1.315” to 5.1/2” with a capacity of 100 tons. Operated pneumatically via a foot pedal, it enhances operator safety and efficiency during tripping operations on the rig floor.
Built from high-grade alloy steel and heat-treated for durability, the Model C features hardened alloy shafts, replaceable bushings, and grease fittings, ensuring long service life and smooth performance. Air cylinders and foot valves are mist-lubricated through the airstream, providing reliable operation even under demanding drilling conditions.
The spider includes a manual safety latch to lock slips in place, preventing accidental release. With protective guards and compatibility with rotary tables using adapter plates, it allows manual rotation and versatile use. Petrorio Drilling Tools’ Pneumatic Tubing Spider offers a durable, safe, and dependable solution for efficient drilling operations.
| Model | Rated Capacity (up to) | Slip Body Size (In Inch) | OD Of Tubular (In Inch) |
|---|---|---|---|
| AB-PTS-C | 100 Ton | 3.1/2 | 1.315–3.1/2 |
| 4.1/2 | 3.1/2–4.1/2 | ||
| 4.3/4 (Integral) | 4.3/4 | ||
| 5 (Integral) |
5 |
||
| 5.1/2 (Integral) | 5.1/2 |
