Petrorio Drilling Tools
Petrorio Drilling Tools manufactures the Venom Shale Shaker, built to deliver high-capacity separation efficiency and operational flexibility in a compact design. Venom Shale Shaker are developed to reduce non-productive time (NPT), lower operational costs, and comply with strict environmental regulations in both onshore and offshore drilling operations.
The Venom Shale Shaker Series efficiently processes premium drilling fluids, maximizing recovery and converting potential waste into valuable resources. It handles a wide range of solids and fluid compositions and adjusts smoothly to variations in rate of penetration (ROP) during drilling.
Built for high-G performance, the Venom Shale Shaker ensures reliability, durability, and operational efficiency. It enhances solids control, improves drilling fluid performance, and contributes to overall productivity and sustainability, making it an essential tool for modern drilling operations.

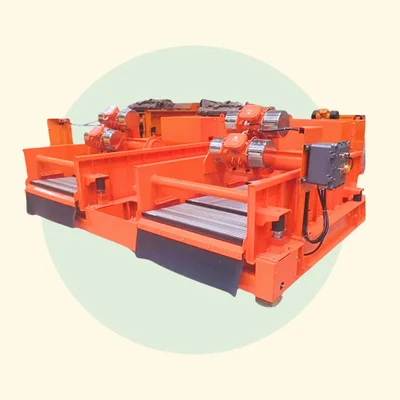

Venom Shale Shaker
Technical Specification
| S.No. | Description/Model | ABI-SD-501 | ABI-SD-502 | ABI-SD-503 |
|---|---|---|---|---|
|
1 |
Motion | Linear | Linear | Linear |
| 2 | No. of Deck | Single | Dual | Triple |
| 3 | No. of screen per deck | 4 No. | 4 No. | 4 No. |
|
4 |
Power supply | 380-415V/50HZ or 460V/60HZ | 380-415V/50HZ or 460V/60HZ | 380-415V/50HZ or 460V/60HZ |
|
5 |
Deck Angle | -1° to +5° | -1° to +5° | -1° to +5° |
|
6 |
Dimensions in mm (L×W×H) | 3100×1800×1420 | 3100×3870×1420 | 3100×6100×1420 |
|
7 |
Weight | 1875Kg | 3750Kg | 5625Kg |
|
8 |
Screen size in mm | 1165×585 | 1165×585 | 1165×585 |
| 9 | Operating temperature | -20℃ to +55℃ | -20℃ to +55℃ | -20℃ to +55℃ |
| 10 | Vibrating noise | 75–85dBA | 75–85dBA | 75–85dBA |
